Boat Depth Gauge LCD Digital Display 52mm 12V 328.08ft Depth Alarm Indicator Yachts Fishing Vessels (81000245 Black Dial Black Bezel)

Spec: Item Type: Boat Depth Gauge Material: Stainless Steel 316L Bezel + Anti Fog Glass Installation Hole Diameter: Approx. 52mm / 2 inches Depth Range: 0-100m Operating Current: ≤60mA Special Function: Waterproof Grade: IP67, Back Cover IP5 Operating Temperature: -30-+75°C Storage Temperature: -40-+85°C Wiring: 1. Red Wire - +12VDC 2. NC 3. Orange Wire - Backlight (+) 4. Blue Wire - Power Negative (-) Installation Steps: Step 1: Drill a 52-53mm diameter circular hole in your center console or other pre installed location, ensuring there is at least 70mm of space behind the panel. Step 2: Insert the gauge into the hole. Step 3: Align the bracket screw holes with the screws on the back of the gauge, then tighten the screws, use the bracket and frame to clamp the panel tightly. Step 4: Directly insert the power harness into the back of the gauge, then connect the corresponding sensor and harness according to the provided instructions and turn on the power. Package List: 1 x Depth Gauge 1 x Power Cord 1 x 10M Depth Line 1 x Fixed Base 2 x Screws 2 x Nuts 1 x User Manual

• [Flexible Installation and Use] Easy to install with alarm functionality, suitable for yachts, small to medium boats, fishing vessels, and other marine vessels.

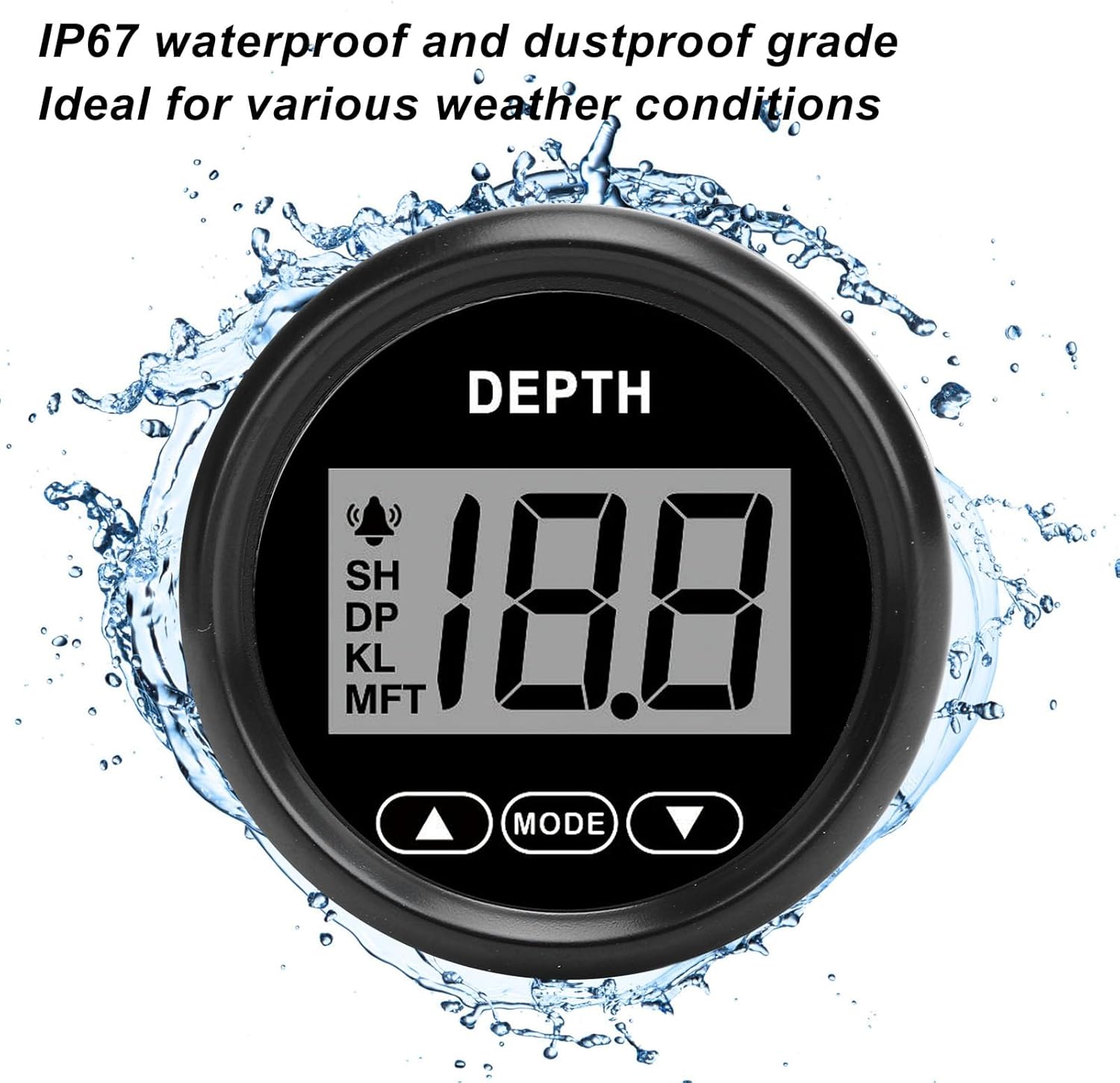

• [Outstanding Performance] Made with stainless steel 316l bezel and anti-fog glass, with ip67 dial rating.
• [Rugged and Design] Features stainless steel bezel, dome glass lens, white backlight, and secure wire harness buckle for strong connection even under intense vibration.
• [Easy Nighttime Usage] Lcd display with backlight for easy viewing at night, providing high precision, reliability, and simplicity.
• [Maximum Depth Indication] Can indicate up to 100 meters depth for quick water depth understanding.
